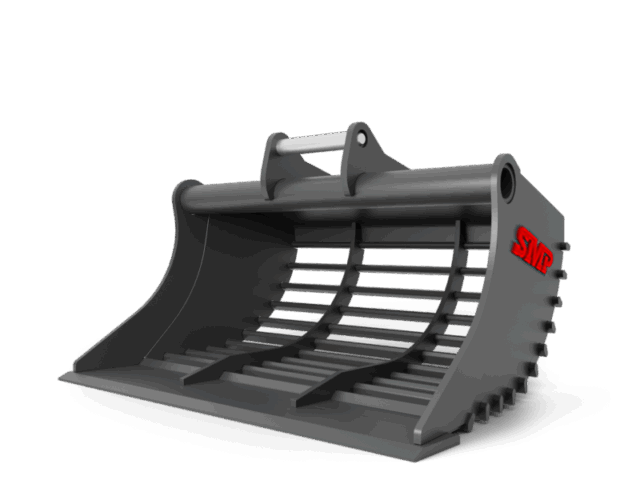

Grip and Sorting Buckets

SMP Parts selection of grip and sorting buckets

Grip and Sorting Buckets fit all excavators from 0,7 to 50 tonnes.

Comes with a 2 year factory warranty

- Made out of high-quality materials (Hardox® and Weldox®)
- Induction hardened pins
- Extremely high closing force by smart design
Smart design provides optimum gripping capability
- Extremely high rotating force by slewing ring
- Turnable blades (3x)
- Endless 360 ° rotating with 2 Parker® motors (from PRg3)
- Easy maintenance for the operator
- Robust housing



Would you like a quote for this product?

Enter your name, telephone number and email address so that we can contact you.

You must fill in at least one of the following fields; telephone or email.

Would you like a quote for this product?

Enter your name, telephone number and email address so that we can contact you.

You must fill in at least one of the following fields; telephone or email.

Technical Specifications/model PG without rotator

Model: (ridgid) Machine class (tonnes) Approx weight (Kg) Volume (litres) Gripping force (kn)
PG0-30 0.7-1.4 65 30 6
PG1-70 1.5-4 130 70 18
PG1-100 1.5-4 145 100 18
PG2-150 4-9 293 150 24
PG2-200 4-9 311 200 24
PG2-300 4-9 357 300 24
PG3-400 12-20 693 400 46
PG3-500 12-20 715 500 46
PG3-600 12-20 745 600 46
PG3-700 12-20 767 700 46
PG4-700 18-32 1230 700 84
PG4-800 18-32 1300 800 84
PG4-900 18-32 1370 900 84
Weights may vary depending on the version of the product.



Technical Specifications/model PRG with rotator

Model: (rotation) Machine class (tonnes) Approx weight (Kg) Volume (litres) Gripping force (kn)
PRG0-3 0.7-1.4 70   6
PRG1-70 1.5-4 165 70 18
PRG1-100 1.5-4 180 100 18
PRG2-150 4-9 350 150 24
PRG2-200 4-9 370 200 24
PRG2-300 4-9 415 300 24
PRG3-400 12-19 873 400 46
PRG3-500 12-19 895 500 46
PRG3-600 12-19 925 600 46
PRG3-700 12-19 947 700 46
PRG4-700 18-30 1460 700 84
PRG4-800 18-30 1530 800 84
PRG4-900 18-30 1600 900 84
PRG5-1000 32-50 2750 1000 90
PRG5-1100 32-50 2850 1100 90
PRG5-1300 32-50 2970 1300 90
Weights may vary depending on the version of the product.
